Raimondi Raizor Cutting System

B.A.T. TrimsSKU: RAI-RAIZOR

Options: 3200mm
Price:
Sale price$1,349.95

Description

The Raimondi Raizor Cutting System is a professional-grade rail-guided tile cutter designed for precise cutting of large-format tiles, including porcelain, ceramic, and natural stone. It’s suitable for both workshop and on-site use, offering accuracy and portability for tiles up to 336 cm in length, with optional extensions available.

Key Features:

  • Modular rail system with two 160 cm rails that connect for a total cutting length of 336 cm; extension rails can increase cutting length to 450 cm

  • Titanium-coated 20 mm scoring wheel with integrated bearing and calibrated screw for smooth, precise scoring

  • Die-cast aluminum cutting unit slides on resin wheels for consistent pressure and alignment

  • Dual-lip rubber suction cups on rails ensure strong adhesion to tile surfaces, preventing movement

  • Includes cutting-off pliers for tiles 3 to 15 mm thick with progressive pressure system for clean snapping

  • Comes with a padded carrying bag for protection and easy transport

Specifications:

  • Maximum cutting length: 336 cm, extendable to 450 cm with optional rails

  • Tile thickness capacity: 3 to 12 mm standard; additional pliers available for thicker tiles

  • Weight: Approximately 9 kg

Optional Accessories:

  • Extension rails (100 cm) to increase cutting length

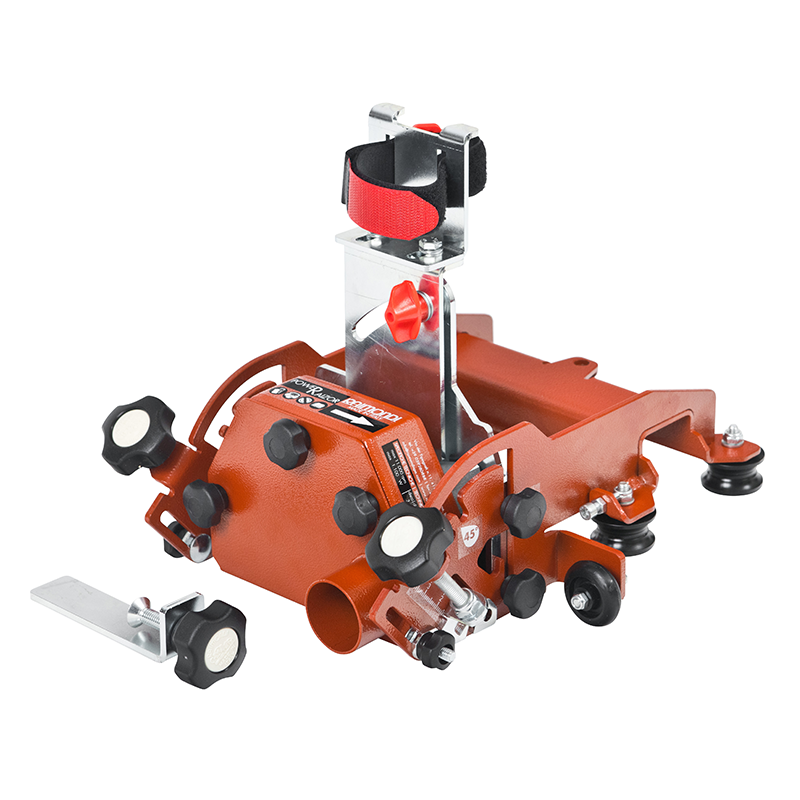

  • Power-Raizor cutting unit for angled cuts with diamond blade

Applications:
Ideal for professional tile installers working with large-format tiles, providing precision and flexibility for straight, diagonal, and angled cuts in both workshop and on-site environments.
