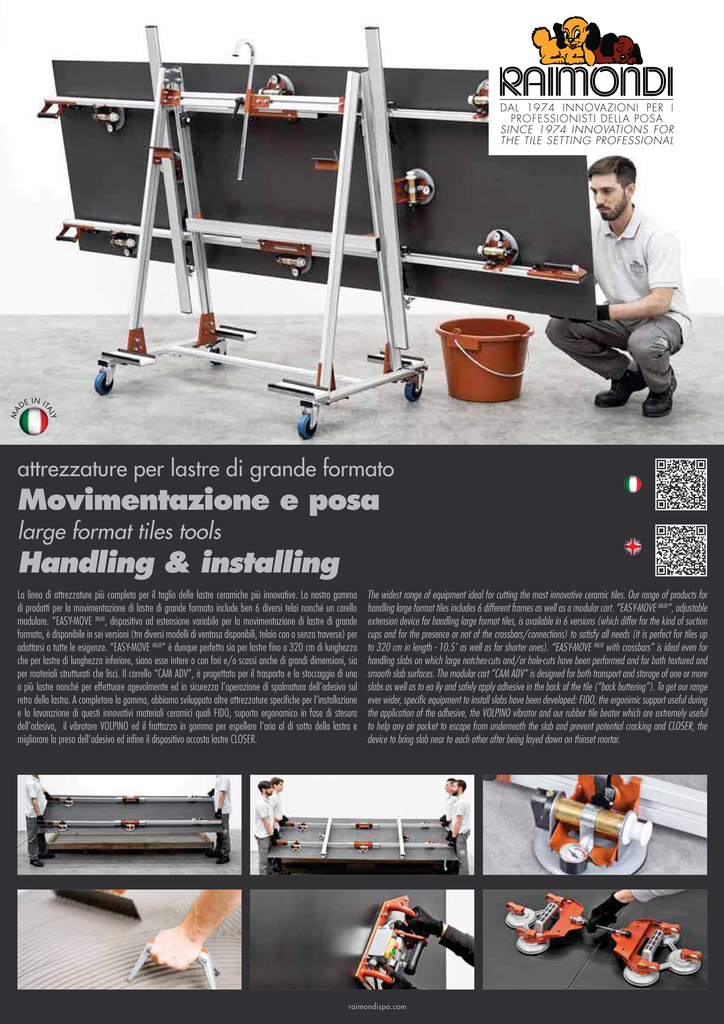

Raimondi Easymove

The Raimondi Easy-Move system is a professional-grade tile handling solution designed for the safe lifting, moving, and positioning of large-format porcelain, ceramic, and stone slabs. Built for maximum versatility and control, it’s ideal for tilers and contractors working with tiles up to 3.2 metres.

Key Features:

• Multiple Configurations: Available in variants including Easy-Move 150, Easy-Move MkIV, and Easy-Move MkIV X-Light, to suit different tile lengths and handling requirements.

• Telescopic Main Bars: Sliding aluminum profiles adjust to the length of the tile, accommodating sizes from approximately 100 cm to 320 cm.

• Adjustable Crossbars: Telescopic crossbars expand in width to support slabs of different dimensions and maintain rigidity during lifting.

• Vacuum Suction Cups: Equipped with high-performance vacuum cups featuring pressure gauges and tilting action, ensuring strong adhesion to both smooth and textured surfaces.

• Ergonomic Grips: Non-slip, stain-proof rubber handles with soft padding provide a secure and comfortable grip during operation.

• Lightweight & Durable: Constructed from die-cast aluminum for a strong yet manageable frame, with anti-friction pads to protect tile surfaces.

Specifications by Variant:

• Easy-Move 150:

  • Fixed bar length (150 cm)

  • 4 suction cups (2 per bar)

  • Approx. weight: 10.4 kg

• Easy-Move MkIV:

  • Adjustable from 100 cm to 320 cm

  • Typically includes 6–8 suction cups

  • Approx. weight: 25 kg

• Easy-Move MkIV X-Light:

  • Adjustable from 55 cm to 320 cm

  • Optimised for minimal weight with single suction cups

  • Approx. weight: 21 kg

Applications:

Perfect for handling and installing extra-large format tiles with precision and safety. The Easy-Move system is suited to residential, commercial, and industrial projects where high-value slabs must be installed without risk of breakage or surface damage.
